Description

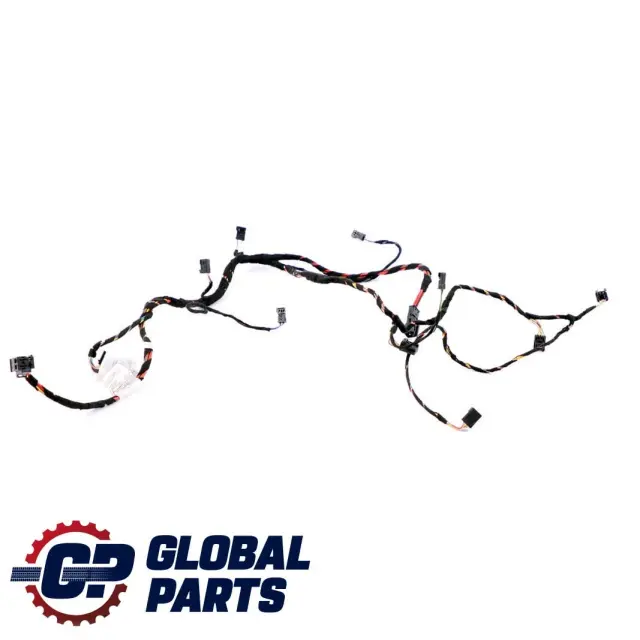

The BMW 1 F40 / Mini F55 F56 Heater and Air Conditioning Wiring Harness is an original electrical system component designed for the front left side of the vehicle. Designed by BMW, this harness ensures proper power supply and communication for the heating and air conditioning system components, contributing to stable airflow and thermal comfort in the cabin. This solution is dedicated to specific BMW 1 Series F40 and Mini F55/F56 models, facilitating fitment and installation.
Specifications and technical data
- SKU: 9304024
- Mark: BMW (Genuine OE)
- Condition: Used
- OEM Part Number: 9304024
- Substitutable numbers: 64119304024, 9304024, EM
- Location on the vehicle: Front, Left
- Category: Other Air Conditioning & Heating
Vehicle Application and Function
The presented heater and air conditioning wiring harness operates in the front left area of the body, connecting HVAC system components to the vehicle’s electrical system. It is responsible for transmitting control signals and supplying power to components such as the control module, actuator motors, and sensors related to heating and air conditioning. The factory design ensures the correct routing of wires, minimizing the risk of chafing, short circuits, and system malfunctions.
Construction and Fitment for BMW 1 F40 and Mini F55/F56
The harness is constructed as a dedicated component for the BMW/Mini platform, with appropriately selected connectors, wire gauges, and segment lengths. This means:
- factory connectors that match the sockets in the heater and air conditioning system,
- wire routing that aligns with original clips and mounts in the body,
- maintained proper electrical and mechanical insulation in the front left area of the vehicle.
This precise fitment supports plug-and-play installation by a service center or workshop specializing in BMW and Mini brands, without the need for modifications or adapters.
Benefits of Using an Original Harness
Using an original wiring harness in the heating and air conditioning system offers a range of practical benefits. The most important include:
- stable HVAC system operation due to proper signal transmission and power supply,
- compliance with factory BMW and Mini electrical schematics,
- reduced risk of air conditioning control unit errors resulting from incorrect connections,
- easier future diagnostics, as the installation remains consistent with the manufacturer’s service documentation.
For users, this translates to predictable heating and air conditioning performance, and for workshops, it means faster installation and a lower risk of warranty claims.
Item Condition and Service Application
The offered harness is a used component, which allows for an economical repair of the heating and air conditioning system while maintaining the original manufacturer’s specifications. This type of component is particularly useful in situations where there has been mechanical damage to the wires, overheating of the installation near the heater, or tampering with the factory wiring. Replacing the entire harness with an original part is often faster and more predictable than localized repairs of individual wires.
If you are planning a comprehensive repair or upgrade of the electrical system area for the heating and air conditioning system in your BMW and need other parts from the same group, such as additional harnesses, connectors, or service wire segments, check the available parts in the Other BMW category.
Technical Support and Knowledge of Premium Systems
