Description

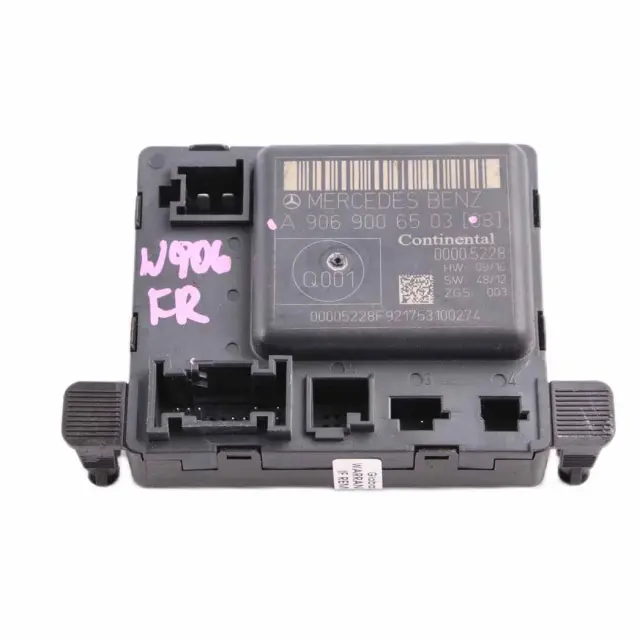

The Mercedes W906 Door Control Module is a component from the Electronic Control Modules and Controllers category, designed to manage door functions in vehicles of this series. It enables stable communication with the vehicle’s body electrical system, ensuring the correct operation of front, left, or right door-related functions. This is a solution for users seeking a proven, factory-original component instead of replacements with uncertain specifications.
Specifications and technical data
- SKU: A9069006503
- Mark: Mercedes (Genuine OE)
- Condition: Used
- OEM Part Number: A9069006503
- Substitutable numbers: A9069006503, A 906 900 65 03, KD
- Location on the vehicle: Front, Left, Right
- Category: ECUs & Computer Modules
Purpose and Function of the Mercedes W906 Door Controller
The Mercedes W906 Door Control Module is responsible for operating the electrical systems located within the vehicle’s doors, such as window control, central locking, and communication with other body controllers. It functions within the vehicle’s electrical architecture as a dedicated comfort system element, collaborating with the main controller network.
Its placement in the front left or right area allows for direct connection to the door wiring harness, which reduces wire length and minimizes the risk of interference. This enables the module to reliably perform its assigned functions within the vehicle’s electronic system.
Construction, Integration, and Compatibility
As a Mercedes brand component, the controller is designed for full integration with the factory electrical system of the specific vehicle platform. This means matched connectors, appropriate communication architecture, and compatibility with the software of other body modules.
In practice, this translates to:
- the ability to be installed in designated mounting points within or in the immediate vicinity of the door,
- preservation of the original comfort system functionality,
- consistency with the vehicle’s factory configuration without the need for wiring modifications.
By using an original controller from the same product line, compatibility with the electrical and logical parameters intended by the vehicle manufacturer is maintained.
Condition, Origin, and Benefits of Choosing a Used Module
The offered component comes from the group of used electronic control modules and controllers. Such components, sourced from dismantling, are often chosen by users and workshops because they significantly reduce repair costs while maintaining factory-quality workmanship.
Choosing a used door controller offers several practical advantages:
- preservation of the vehicle manufacturer’s original specifications,
- better integration with the existing system than many aftermarket replacements,
- economical restoration of the door comfort system’s functionality.
Before installation, it is recommended to verify compatibility by OEM number or by comparing the configuration with the removed element, which facilitates selecting the correct module for a specific equipment version.
Installation and Service Recommendations
The module’s placement in the front left or right area requires access to the door space or its immediate surroundings. Due to the nature of an electronic component, installation in a workshop environment is recommended, adhering to electrostatic discharge protection principles and proper disconnection of vehicle power.
During replacement, it is worth paying attention to:
- the condition of connectors and electrical harnesses leading to the door,
- the correct routing of wires after installation,
- the potential need for module adaptation or configuration within the vehicle’s system.
This approach minimizes the risk of recurring faults and ensures stable operation of the door control system in daily use.
Related Products and Technical Knowledge
If you are looking for other Mercedes electronic control modules and controllers, check out the Mercedes electronic control modules and controllers available in our store to select a component matched to your vehicle’s specific configuration.
When selecting and installing used controllers, knowledge of selection principles and compatibility can be useful. Detailed information can be found in the guide: Used Automotive Electronics Onboard – Why Choose Second-Hand ECU Modules and Sensors?, which discusses, among other things, selection by part numbers, compatibility issues, and practical installation tips.
Summary
The Mercedes W906 Door Control Module is a factory-original comfort system component designed for operation in the front left or right side of the vehicle. As a used module from the electronic controllers category, it allows for a technically correct and, at the same time, economical repair of the door system, while maintaining compatibility with the vehicle’s original electrical architecture.
