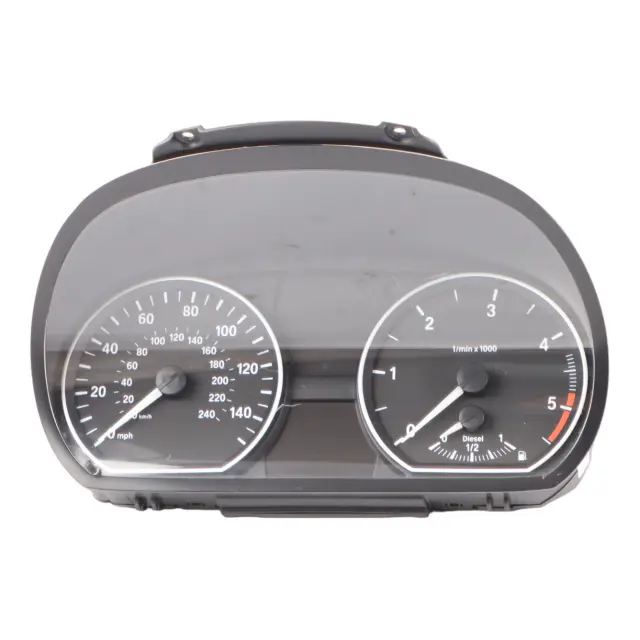

Instrument Cluster BMW E81 E87 E88 Diesel Speedo Clocks Meter Manual 9283802

Description

The Instrument Cluster BMW E81 E87 E88 Diesel Speedo Clocks Meter Manual is an original instrument cluster designed for BMW 1 Series models with a diesel engine and manual transmission. This factory-fitted dashboard ensures clear reading of vehicle operating parameters and seamless integration with the BMW’s electrical system and interior styling. By using an OEM component, you receive guaranteed compatibility, stable performance, and a professional cockpit appearance.

Specifications and technical data

• SKU: rhd-9283802
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9283802
• Substitutable numbers: 9283802, 62109283802, 6951603, 62116951603, 9220950, 62109220950, 9187047, 62109187047, 6961478, 62116961478, 0390927, 62110390927, 9187331, 62109187331, 9166822, 62109166822, 9114094, 62109114094, 9141476, 62109141476, 6964504, 62116964504, 6983532, 62106983532, 6953390
• Fuel type: Diesel
• Gearbox type: Manual
• Category: Instrument Clusters

Intended Use and Compatibility

The presented instrument cluster is specifically designed for BMW 1 Series E81, E87, and E88 models with a diesel engine and manual transmission. This means that the indication logic, speedometer scale, and other functions are tailored to the characteristics of the diesel engine and the gear ratios of the manual gearbox, which translates to correct operation of all basic indicators.

Function and Role in the Vehicle

As a component of the Instrument Clusters category, this dashboard is responsible for presenting key information to the driver, such as driving speed and basic vehicle status warning lights. Using an original instrument cluster allows for maintaining:

• consistent communication with BMW’s onboard electronics,
• proper functioning of warning lights and indicators,
• a unified dashboard aesthetic in line with the factory design.

Therefore, replacing a damaged speedometer with this model is a technically safe and predictable solution in terms of operation.

Benefits of Using an Original Instrument Cluster

Using a factory-fitted dashboard in the BMW 1 Series offers a range of practical benefits:

• Correct Electrical Fitment – the cluster integrates with the vehicle’s electrical system as intended by the manufacturer.
• Appropriate Scaling for Diesel Engine – indications are adapted to the characteristics of the diesel unit.
• Integration with Manual Transmission – the logic of the indicators takes into account the specifics of the manual gearbox.
• Consistent Interior Appearance – the dial graphics and illumination match the styling of the BMW E81/E87/E88.

Condition and Service Application

This item comes from the secondary market, making it an attractive solution for post-accident repairs, replacing a damaged speedometer, or restoring the functionality of the instrument system in older BMW 1 Series models. Choosing a used OEM instrument cluster allows for reduced service costs while maintaining factory construction and predictable performance.

Expanding Modernization within BMW Instrument Clusters

If you are planning a comprehensive repair or modernization of the cockpit area in your BMW and require other components from the same group, such as additional instrument panels, display modules, or alternative clock configurations, check the available parts in the BMW Instrument Clusters category.

Practical Usage Tips

When replacing the instrument cluster in a BMW 1 Series, it is advisable to pay attention to the correct connection of connectors and vehicle electronics procedures to maintain full system functionality. For drivers who want to better plan service work and make informed decisions about replacing parts, the guide: TOP 10 Most Frequently Replaced Parts in Your Car may be helpful.
