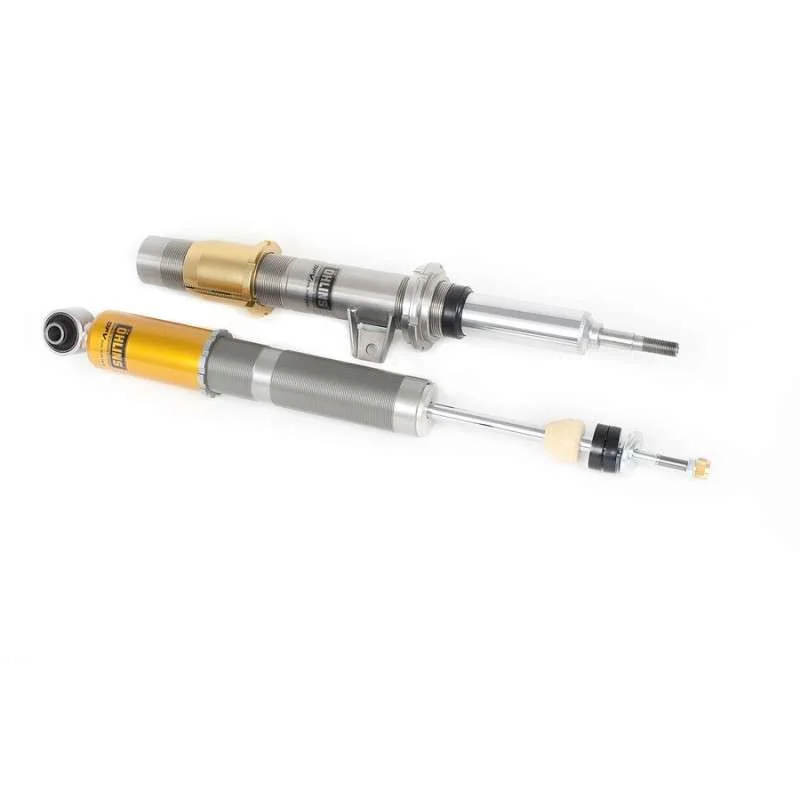

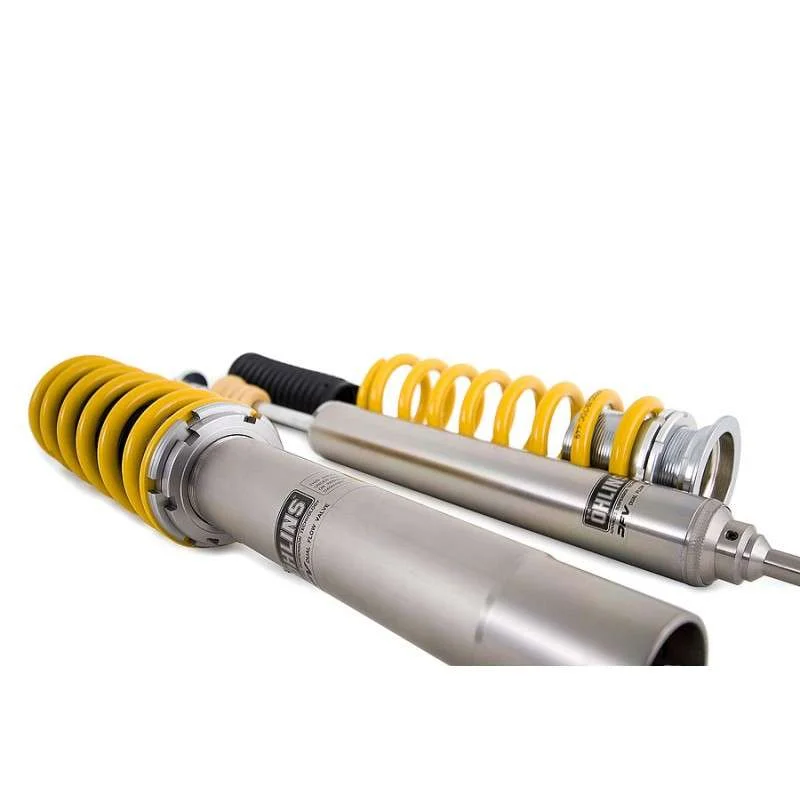

Ohlins Road & Track BMW 3er (2005-2011)

Description

Front:

– McPherson strut, upside down
– Compression and rebound damping with one adjuster
– Spring preload adjuster
– Approx. 20 mm lower than standard with recommended setup
– Heigth adjustment range -3/+15 mm
– Spring rate 60 N/mm
– Dustcovers
– Use with original top mounts

Rear:

– Conventional Shock Absorber
– Compression and rebound damping with one adjuster
– Spring preload adjuster
– Approx. 25 mm lower than standard with recommended setup
– Heigth adjustment range -15/+15 mm
– Spring rate 70 N/mm
– Dustcovers
– Use with original top mounts

Fits the following vehicles:

– BMW 3er (E90, E91, E92, E93), year 2005 – 2011
– Type: Limousine (E90), Touring (E91), Coupé (E92), Cabrio/Convertible (E93)
– Variants: 390L, 392C, 3L, 3K, 3C (alle außer/all except Hybrid & xDrive)
– EG TA: e1*2001/116*0308*00-13, e1*2001/116*0346*00-12, e1*2007/46*0314*, e1*2007/46*0315*, e1*2007/46*0316*
– Component certificate (TÜV approved)
– Manufacturers approval (Switzerland)
– GOCA (Belgium, Luxembourg)
