Description

Land Rover

Range Rover L322 (2002 – 2012)

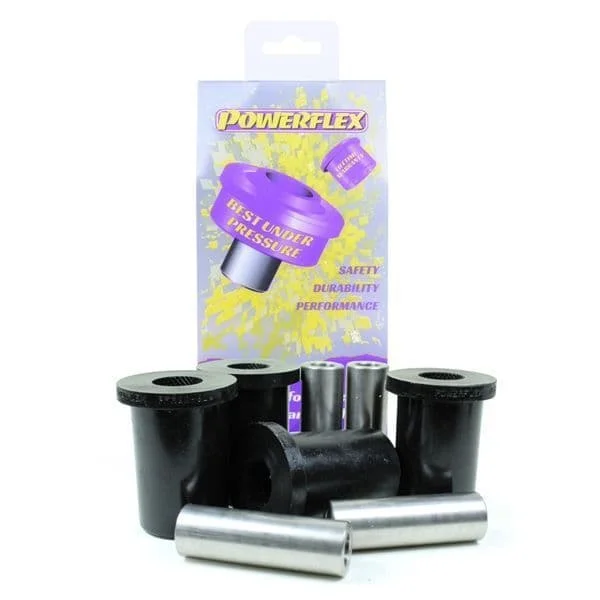

Powerflex Rear Upper Arm Bush

PFR32-812

Powerflex bushes facilitate your car’s grip on the road and improve chassis performance by managing excess movement in the suspension. This results in your suspension acting in the manner for which it was designed. It means your tyres have better contact with the road at all times therefore improving safety and performance.

Diagram Position: 12

Number of Bushes Supplied: 4

OEM Number: RGX000080

Range: ROAD Series

Fitting Instructions:
1. Remove the original rubber bush from the rear
upper arm.
2. Clean any dirt and corrosion from the bore of the
arm and file off any sharp edges.
3. Push in the polyurethane bush into the bore of the
arm with the lip of the bush facing the outside of the
arm.
4. Apply some of the supplied grease into the bore of
the polyurethane bush and fit the stainless steel
sleeve into the bore of the bush so that it sits flush.
5. Refit the arm back to the vehicle and tension all
hardware to manufacturers recommended torque
settings.
