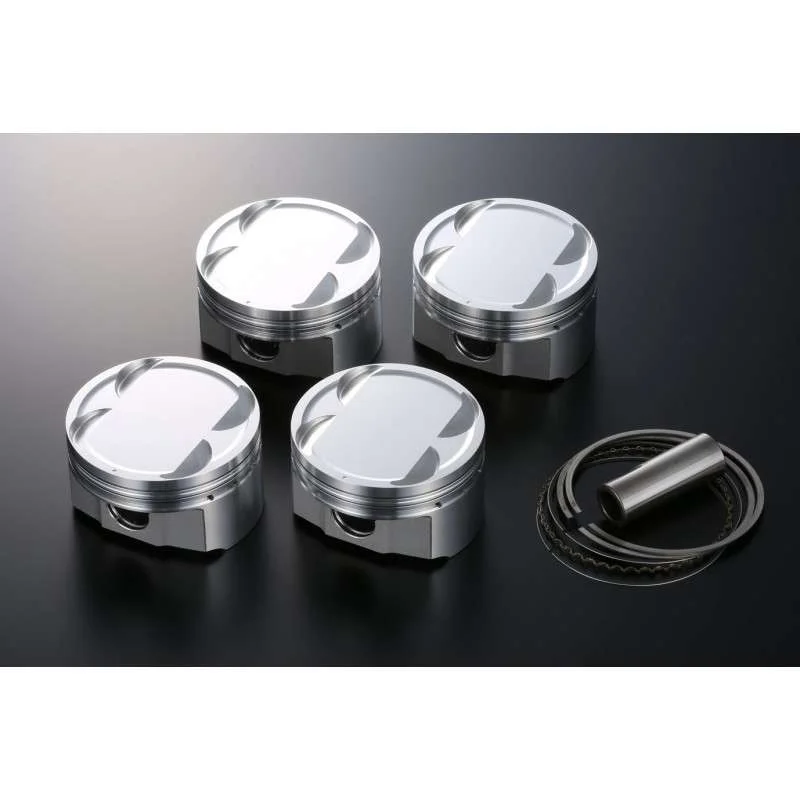

Description
Bore diameter: Fai92.5
pin diameter: Fai23.0
Pin length: 62 mm
recess: Yes
Compression height: 32.0 mm
crown volume: 8.5Cc
piston weight : 373 g
piston pin weight: 123 g
total weight: 496 g
top ring B × T: 1.2 × 3.3g
second ring B × T: 1.2 × 3.7g
oil ring B × T: 2.5 × 2.85g
material: aluminum
normal weight: 568g
Remarks: EJ20 can be used at the time of overhaul of STD engine, and is the perfect piston in order to obtain the advantage to the specifications that require power and durability that can not be suppressed in the STD piston.
