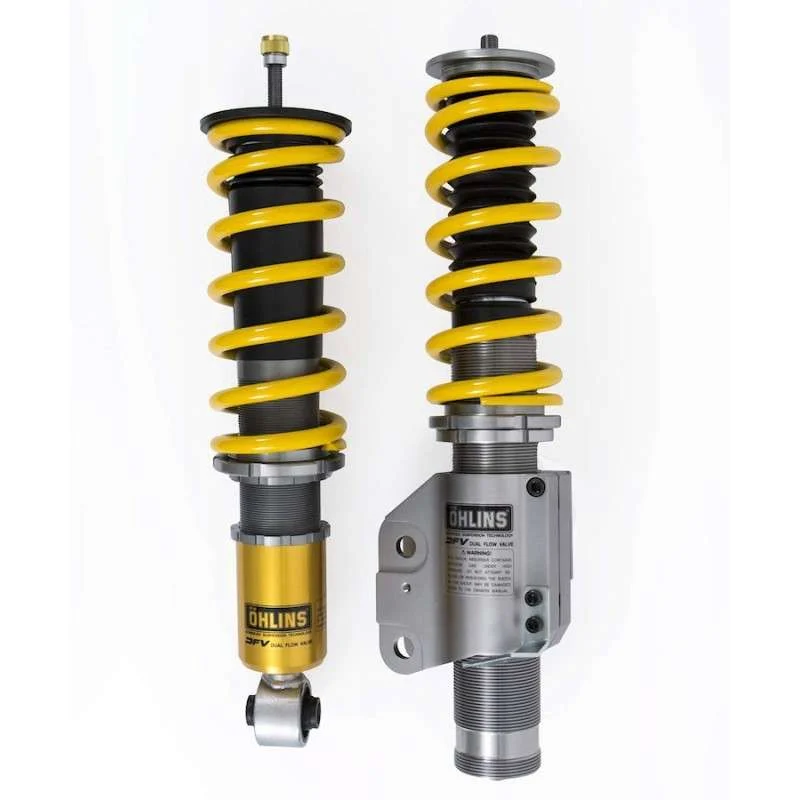

Ohlins Road & Track BMW 3er (2012-)

Description

Front:

– McPherson strut, upside down
– Compression and rebound damping with one adjuster
– Spring preload adjuster
– Approx. 20 mm lower than standard with recommended setup
– Heigth adjustment range -5/+15 mm
– Spring rate 60 N/mm
– Dustcovers
– Use with original top mounts

Rear:

– Conventional Shock Absorber
– Compression and rebound damping with one adjuster
– Spring preload adjuster
– Approx. 15 mm lower than standard with recommended setup
– Heigth adjustment range -15/+15 mm
– Spring rate 160 N/mm
– Dustcovers
– Use with original top mounts

Fits the following vehicles:

– BMW 3er (F30), year 2012 –
– Type: F30
– Variants: 3L, 3K, 3C
– No approval

Notes:

An optional EDC cancellation kit with the article no 35020-02 is available for this product. The cancellation kit is just plugged into the original suspension controls and deactivates control lamps and error reports when electronically adjustable EOM suspension is replaced by a mechanical system. No further programming needed.
